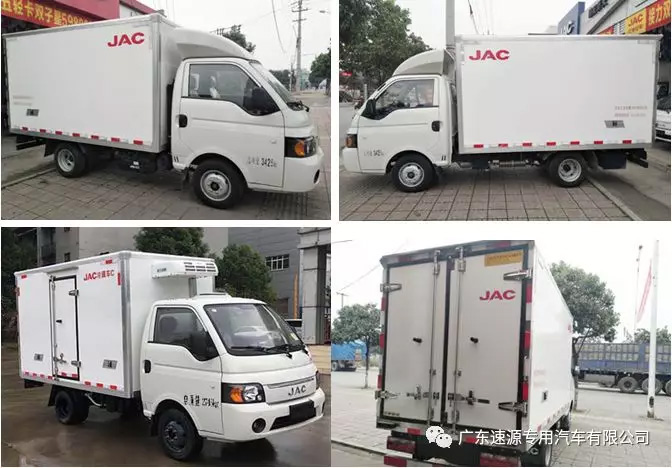

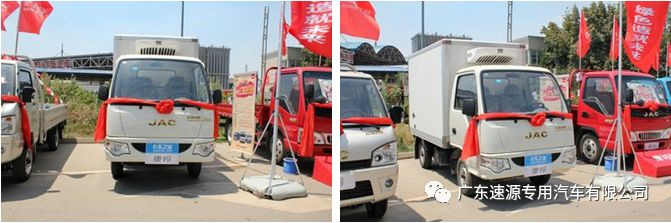

Kangling X5 (National Six) Refrigerated Car Products

The car has a length of 5660mm, a width of 1870mm and a height of 2810mm. The car body is 3660mm long, 1870mm wide, 1900mm high, and the car body volume is 11 cubic meters.

Kangling X5 (National Six) refrigerated car body structure

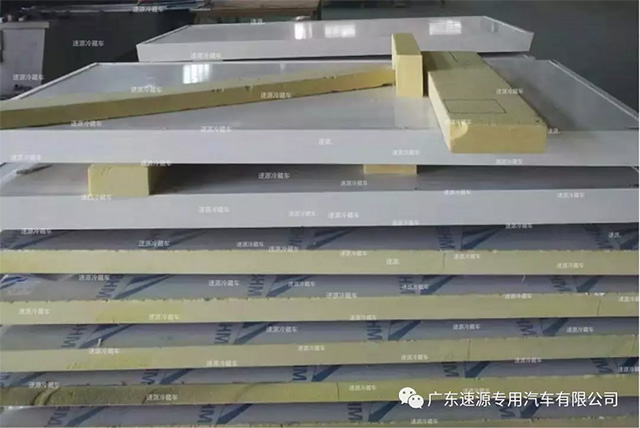

The panel is integrally infused with the international leading vacuum foaming technology, and there is no cold bridge. The surface of the panel is flat and the foam is even in the middle. The density of the insulation layer reaches 45kg/m3, the airtight performance of the insulation layer is high, and the total heat transfer coefficient K value ≤0.02W/m2.K meets the international standard; the insulation performance of the car body is strong, and the total heat leakage rate is ≤16W/K;

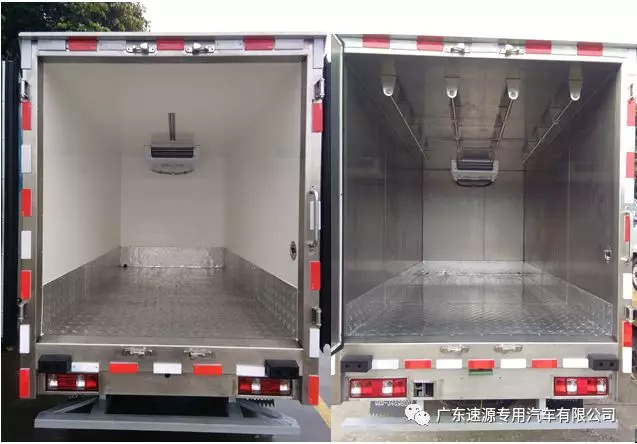

The outer skin is made of glass plate and the inner skin is made of glass plate or stainless steel. The bottom plate is equipped with waterproof splint to improve the bearing capacity of the car and increase the service life of the car. The connecting part of the board is sealed with polyurethane, so that the refrigerated car can be seamlessly perfused, effectively reducing the loss of cold energy and saving oil cost.

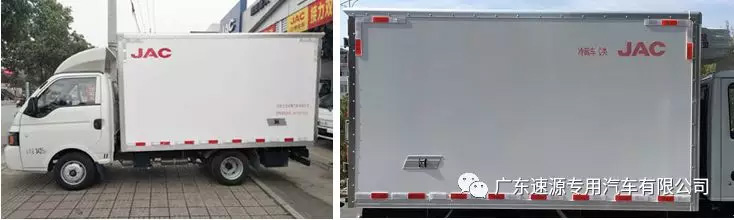

The exterior of the car is covered with aluminum profiles, the appearance is neat, the rivet screws are perfectly hidden in the edging, and the retaining groove and the baffle are stainless steel.

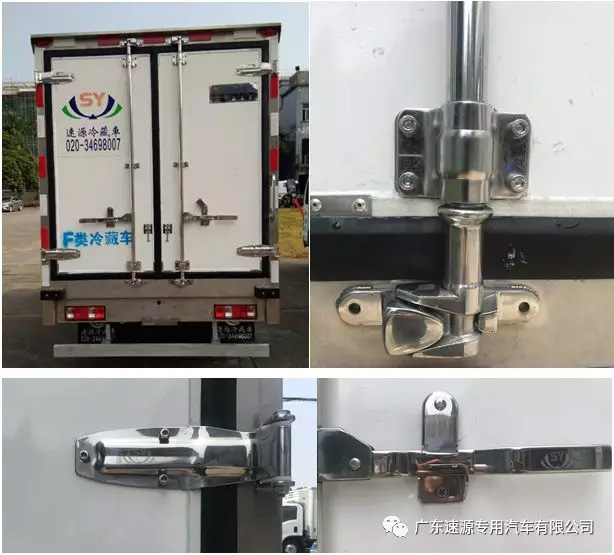

Sealing strip frame to enhance rear door sealing. The door rod, door lock and door hinge are all stainless steel, increasing the service life of the door hinge
